PSG 4/5.5-600 und 5.5-750
The robust Stallkamp separator!
Separation system for industry processing. This separator is especially designed for food production, slaughterhouses and other processing industries. The perfect solution for any separation in your process! The PSG is available as a mobile unit including pumps.
Our PSG 4/5.5-600 and 5.5-750 at a glance
Specification
The basic machine press screw separator PSG consists of:
- Heavy machine housing made from cast iron with inlet chamber and 2 separate cleaning holes
- Inlet for the fluid to be separated
- Outlet ports with square flange for the filtered fluid
- Robust, fine-mesh screen cylinder made from stainless steel
- Plated, two-way press screw made from stainless steel with precision fit for the screen
- Drive motor
- Solids outlet made from stainless steel; flaps steplessly adjustable via counterweight for controlling the residual moisture content
- Subframe/fastening frame made from stainless steel
The mobile unit consists of:
- Basic machine PSG 5.5-750 (5,5 kW)
- supply and feeding pump
- receiver tank 0,85 m³ with level indicator
- hopper 0,85 m³ with level indicator
- control cabinet for the controlling the separator and the both pumps
Application
Perfect as separator for
- Agriculture: separation of manure, production of organic bedding material
- Biogas plant: separation of fermentation residues / digestate
- Food industry and meat packing industry: e.g. separation of waste from slaughterhouses, potatoe sludge
- Distilleries: dehydrating mash and distiller’s grains
Advantages
- Efficient separation performance with high throughput
- Simple separator control
- Bilaterally mounted press screw
- Continuous process
- Excellent price/performance ratio due to cast iron housing
- Low energy consumption
Dimensions
L x W x H (mm)
- PSG 3.0-600: 2240 x 1130 x 950
- PSG 4.0-600: 2240 x 1130 x 950
- PSG 5.5-600: 2310 x 1130 x 950
- PSG 5.5-750: 2410 x 1130 x 950
Technical Data
- Drive motor 4 / 5.5 kW
- Rotational speed 30 rpm.
- Screen basket Ø 254 mm L = 600 / 750 mm
- Gap widths:0,35 / 0,50 / 0,75 / 1,00 mm (other widths upon request)
- Throughput 5-25 m³/h

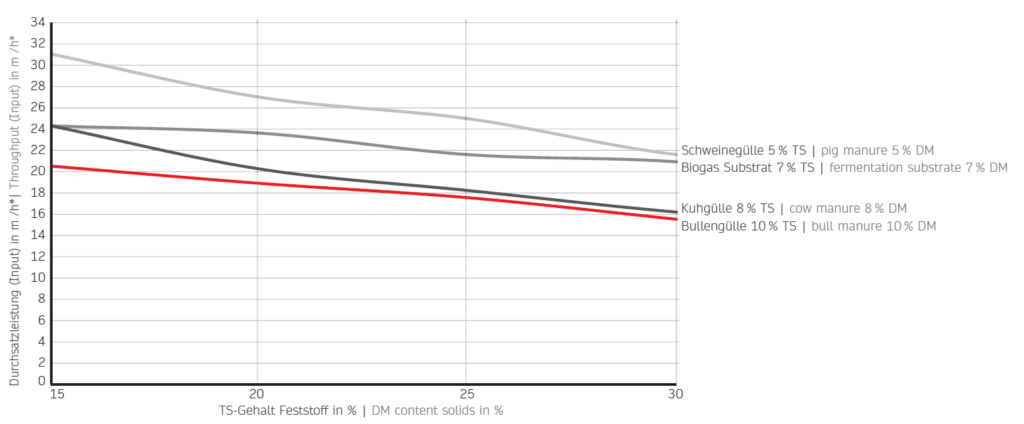

Performance
